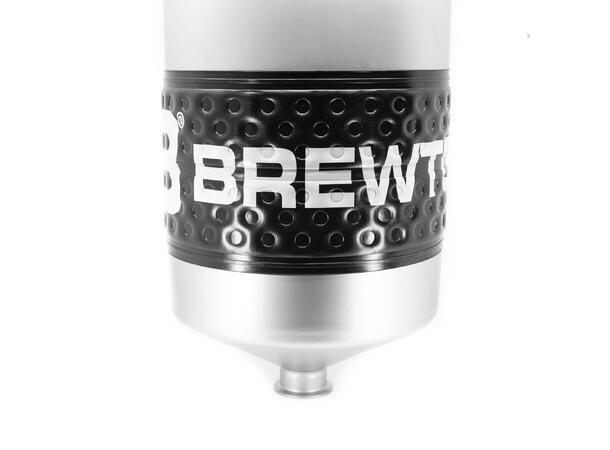

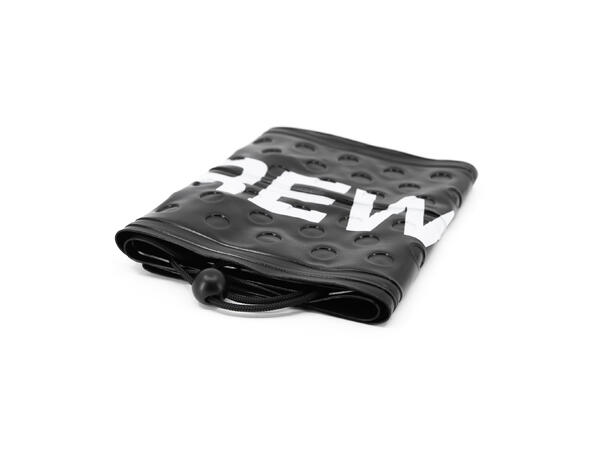

Soft cooling jacket made from TPU; a strong and flexible material.

An effective and cost efficient solution for cooling tanks.

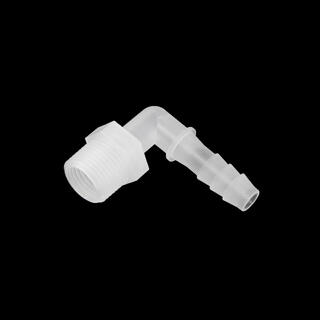

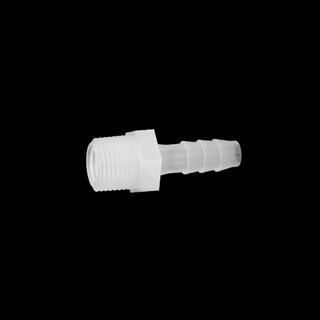

The jacket has two 3/8" NPT threaded ports for coolant adapters.

Height: 180mm.

Length: 850mm.

Max pressure 0.5 bar.

Operating temperature: -10 to 60 degrees Celsius.

Designed for tanks with outside diamter from 280mm.

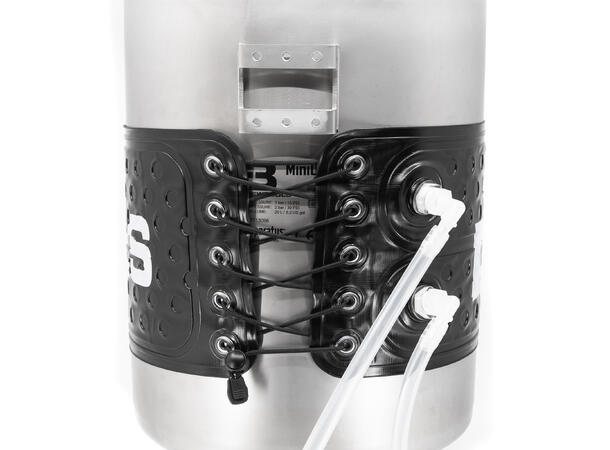

For use with larger diameter tanks, the laces can be adjusted by skipping loops or changing the lace.

PTFE thread tape is recommended for the fittings.
