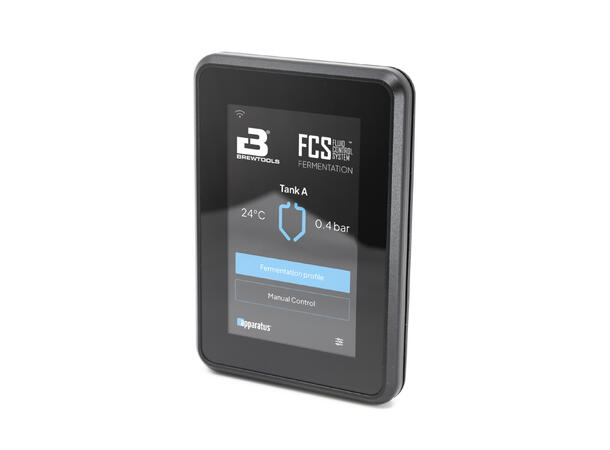

The Display Module is the control unit of FCS (Fluid Control System). It has integrated WiFi and Bluetooth and does all the processing and controls your processes.

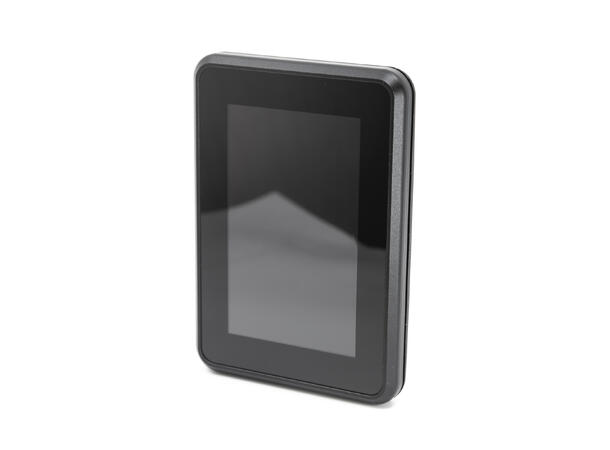

A 5" IPS-panel offers superior viewing angles and readability. The device also has a built-in speaker for warnings and alarms.
Updates via the internet (OTA) is done quickly and easily both of the Display Module itself and all connected devices over CAN bus.
The software it runs is dependant on the product it is used on.
More information: https://docs.brewtools.com/user-manuals/fcs-fluid-control-system
Specifications:
- XTensa LX7 dual core MCU, 240 mhz
- WiFi 802.11 b/g/n
- Bluetooth 5 (LE)

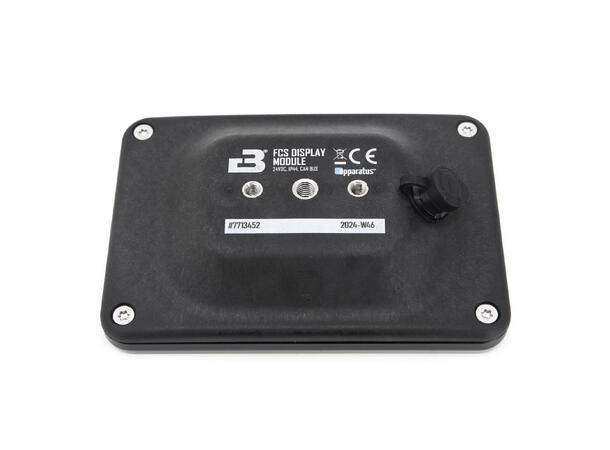

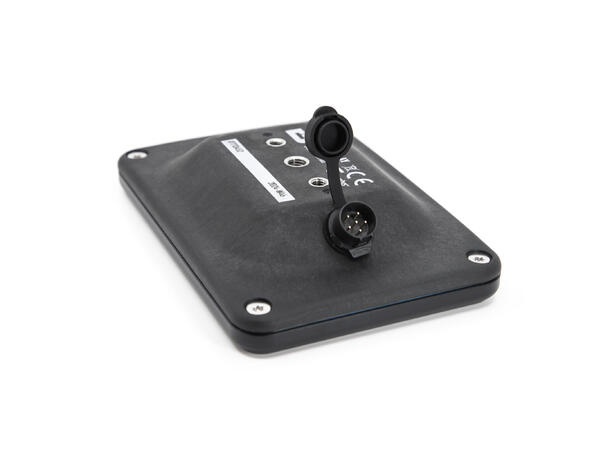

- CAN bus + 24V connector, 6-pin LP12
