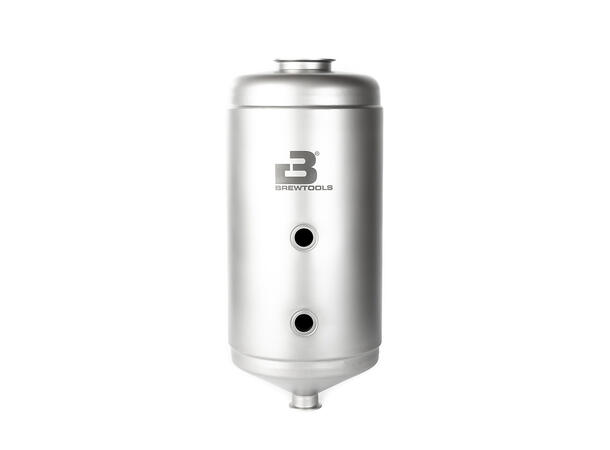

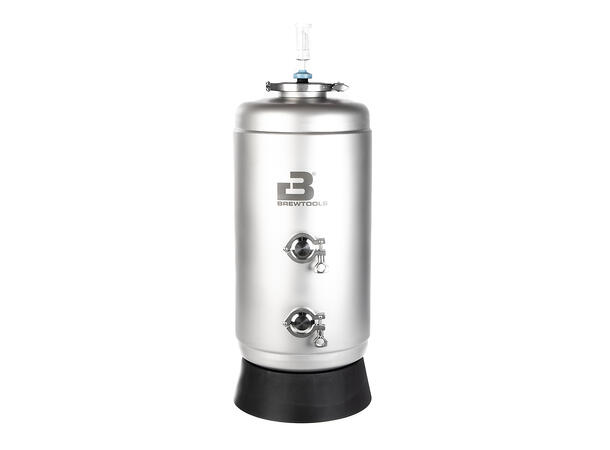

The MiniUni™ tanks is a series of high quality, affordable and flexible tanks for fermentation, storage and serving beer and endless other applications like water heating, cleaning liquid storage, HERMS setups, etc.

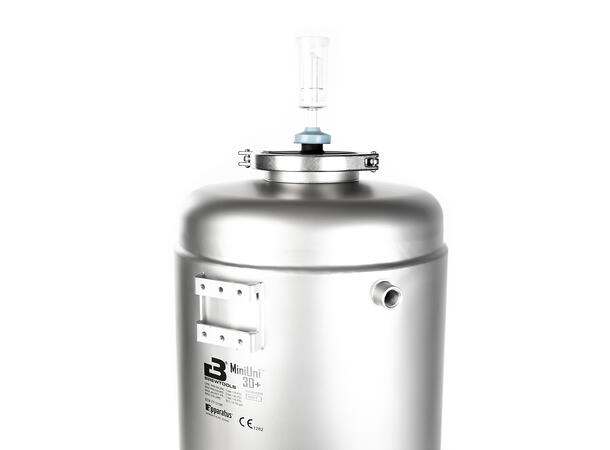

The Plus-models also has a cooling jacket with 3/8" NPT threaded ports and two 1.5" TC ports in the front.
They can be kept in the included base, or installed on the wall with the included wall bracket.
With the optional pressure kit you can utilize the 2 bar (30 psi) pressure rating for fermentation and carbonation.
Use them to build your setup - and as always, we appreciate any feedback or requests for accessories - They will last a lifetime.
Key Features:
- Our PureBlast™ surface inside and out which eliminate the use of wax and polishing compounds and does not require passivation.
- Easy cleaning with a 4" TC top port and 2" TC bottom port
- Pressure rated for 2 bar / 30 PSI.
- Wall bracket included
- Cooling jacket with 3/8" NPT ports
- Two 1.5" TC ports
Our MiniUni tanks are designed and manufactured with special attention to safety and quality.
They are tested and certified according to the requirements for PED 2014/68/EU by a third party.
Specifications:
- Packaging size: 34 (w) x 35 (d) x 77 (h) cm
- Net weight: 14.2 Kg
- Gross weight: 15.8 Kg
- Tank diameter (inside): Ø28 cm
- Max volume: 30 liter
- Volume, cone: 1,7 liter
- Material: 1.5mm stainless steel (SS304)
- Operating pressure: 1.0 bar / 15 PSI
- Max pressure: 2.0 bar / 30 PSI
In the box:
- MiniUni™ Tank
- Base with silicone gasket

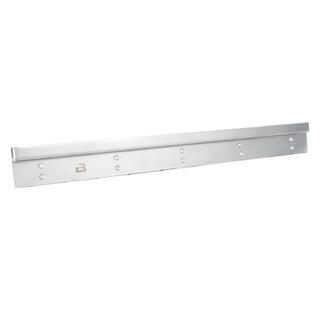

- Wall bracket and wall support
- Wall bracket safety pin
- Composite TC adapter 4" to 34mm
- Airlock, 3-piece with holder
- Tri Clamp, 4"
- Tri Clamp, 2"
- 2 pcs Tri Clamp, 1.5"
- TC Blind cap, 2"
- 2 pcs TC Blind cap, 1.5"
- TC Gaskets
For more detailed information and user manual, please visit docs.brewtools.com
