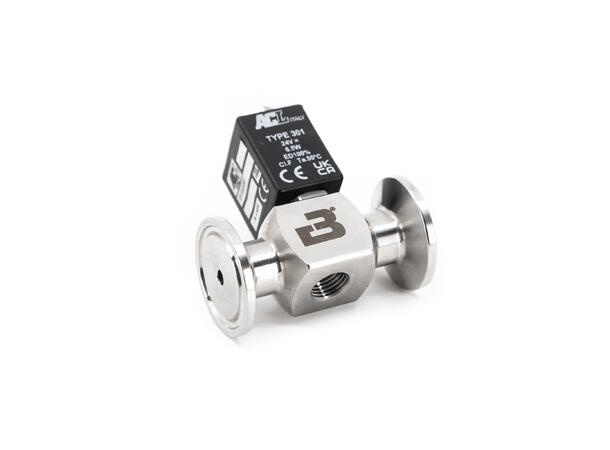

Solenoid valve made from stainless steel. Designed for air/co2.
TC3mm ports in both ends for maximum flexibility.
Coil and plunger Italian-made by ACL.
The valve can easily ble disassembled and cleaned.
Coil has DIN 43650 Type B connector (not included).

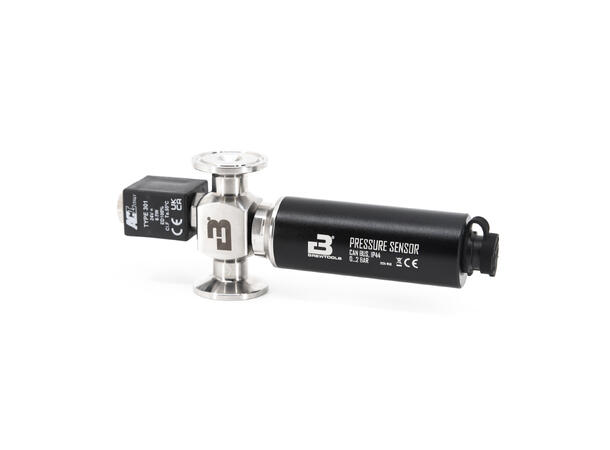

M12 threads for pressure sensor integrated.
Specifications:
Ports: TC34mm / TC34mm + M12
Operation: NC (normally closed)
Power supply: DC24V, 6.5W
Orifice: Ø2.0mm
Pressure rating: Max 3 bar / 43 PSI
